UNICA-R
AUTOMATIC MACHINE CHECK
WEIGHT OF CORK WASHERS
WEIGHT OF CORK WASHERS

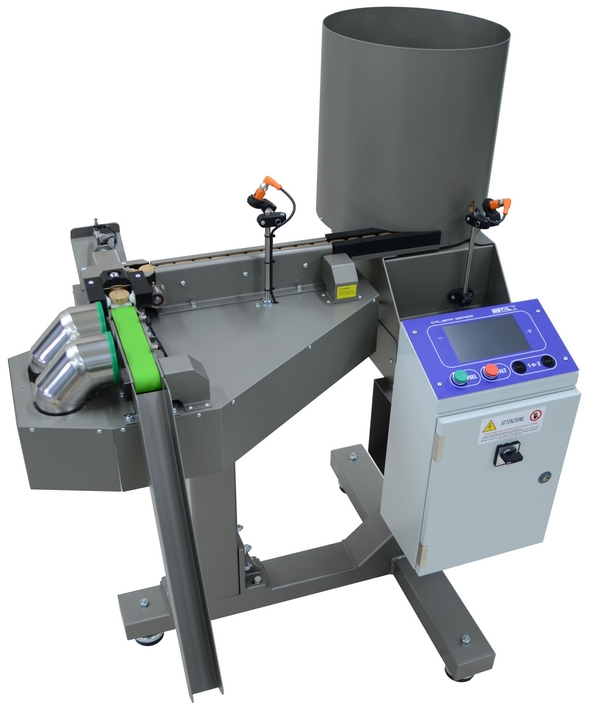

UNICA-R is an automatic machine that derives directly from the experience and precision of its sister UNICA and is designed to check the weight of 34mm diameter cork washers.
UNICA_R in fact classifies "non-compliant" washers from "compliant" ones in 3 divisions: Conform, Heavy, Light.
Upgredable software, Ethernet connection, operation diagnostics and HMI operator interface make UNICA compatible with modern certifications on the ergonomics and efficiency of the workplace in logic 4.0
UNICA_R in fact classifies "non-compliant" washers from "compliant" ones in 3 divisions: Conform, Heavy, Light.
Upgredable software, Ethernet connection, operation diagnostics and HMI operator interface make UNICA compatible with modern certifications on the ergonomics and efficiency of the workplace in logic 4.0
The Check of UNICA-R
Colore
CLOAD CELL
The UNICA load cell represents the true innovative aspect of this machine.
The use of a HARDWARE CUSTOM and specific algorithms, have allowed the achievement of excellent performance in a single mechanical body and small size. Hourly productivity of 8,000 washers / h with an accuracy of +/- 0.1g
The UNICA load cell represents the true innovative aspect of this machine.
The use of a HARDWARE CUSTOM and specific algorithms, have allowed the achievement of excellent performance in a single mechanical body and small size. Hourly productivity of 8,000 washers / h with an accuracy of +/- 0.1g

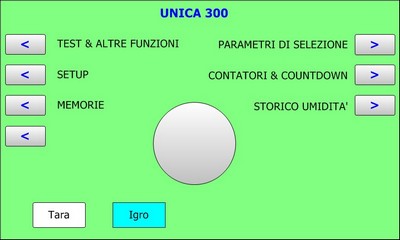

MENU structure:
A sophisticated machine like UNICA_R inevitably has a number of options and settings.
Setup, Calibrations, Variables, Testing etc. are all functions managed by a simple and intuitive HMI (Hunan Machine Interface) MENU. This type of interface allows the maintenance of the machine in optimal conditions even without the use of specific equipment and easy operation.
A sophisticated machine like UNICA_R inevitably has a number of options and settings.
Setup, Calibrations, Variables, Testing etc. are all functions managed by a simple and intuitive HMI (Hunan Machine Interface) MENU. This type of interface allows the maintenance of the machine in optimal conditions even without the use of specific equipment and easy operation.
PRODUCTIVITY under control
UNICA_R is able to provide multiple information regarding productivity.
In Real-time updated washer information for both graphical and numerical weight washer, rankings and percentages; furthermore, by accessing a Data Base, also to statistical information on the return on a job for up to thirty years.
UNICA_R is able to provide multiple information regarding productivity.
In Real-time updated washer information for both graphical and numerical weight washer, rankings and percentages; furthermore, by accessing a Data Base, also to statistical information on the return on a job for up to thirty years.

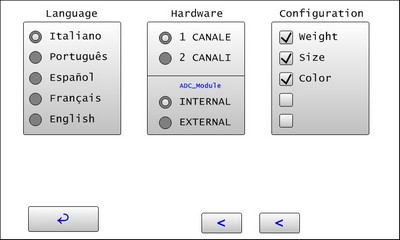

CONFIGURABLE
The software of UNICA has been studied in order to adapt itself to the different configurations made necessary by the different needs of the customers.
The result is a single software able to manage any Hardware and Mechanical configuration (including that of it's sister UNICA), allowing compatibility of future developments to all machines, regardless of their configuration.
The software of UNICA has been studied in order to adapt itself to the different configurations made necessary by the different needs of the customers.
The result is a single software able to manage any Hardware and Mechanical configuration (including that of it's sister UNICA), allowing compatibility of future developments to all machines, regardless of their configuration.
|
SISTEL SERVCE srl - Via Sgittario 3/3 | 40037 - Sasso Marconi (B0) - Italy
Link : History Museum (it)
| Project | SISTEL srl |
| Hardware | Custom |
| Microprocessor | ARM Cortex-M4 (RISC) |
| Acquisition | 12Bit A/D Converter |
| Weight detection system | Wheatstone Bridge |
| Keyboard | TOUCH SCREEN |
| Display | Full Color 7" Wide |
Characteristics of UNICA - R
| Max Productivity | 8.000 Washers/h |
| Accuracy: Weight +/- g | 0,1 |
| Alimentation | Centrifugal Feeder |
| Classificartions | 3 |
| Washer Height | 6 - 12mm Fix |
| Number of channels | 1 |
| Tele Assistance | No |
| Loader Control | Yes |
Some details
Peso
